Structural Repair in Aroop Gujranwala | 2.5 Marla House Renovation

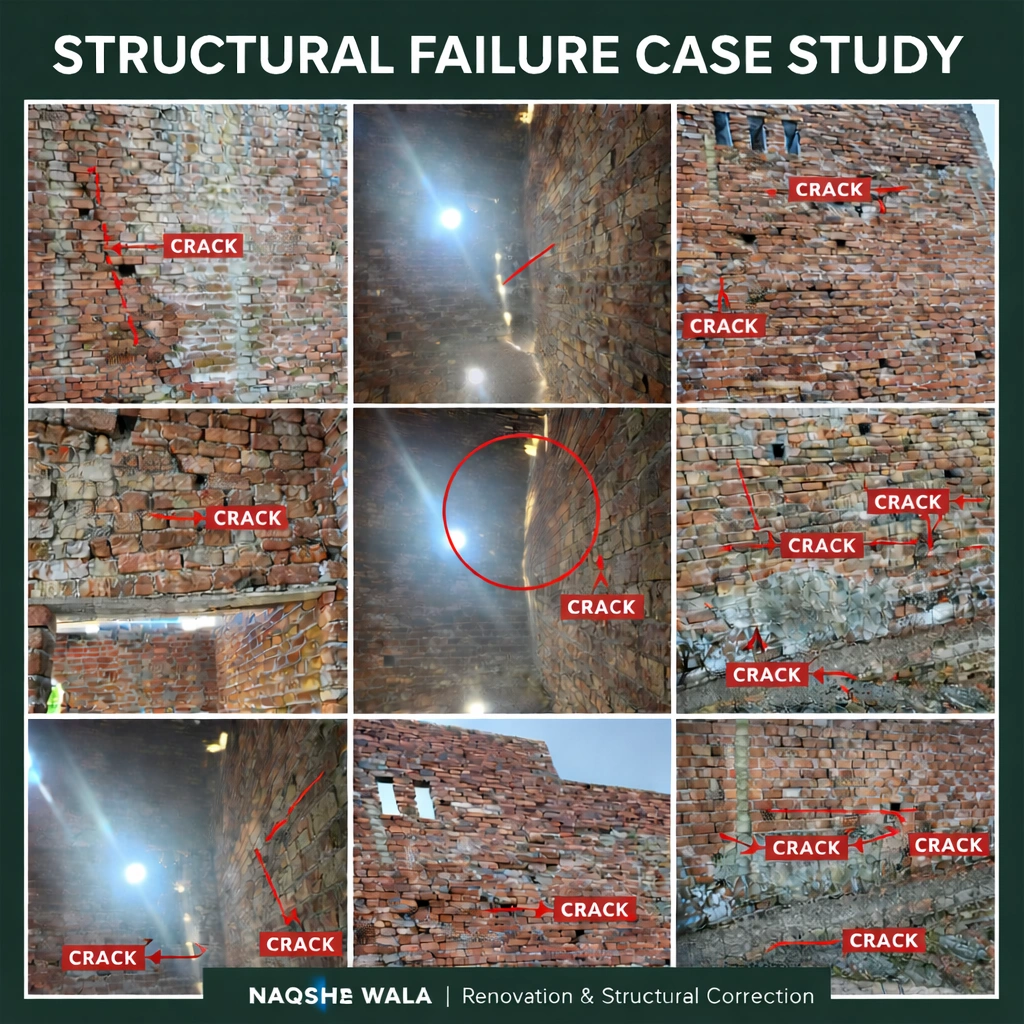

This project in Aroop, Gujranwala is a real-life example of how poor construction practices can lead to severe structural failure, and how professional intervention by Naqsha Wala can completely transform and save a building. The house belonged to Rana Jabbar, and it was a 2.5 marla residential structure that had developed dangerous cracks, wall separation, dampness issues, and major structural instability. When our team at Naqsha Wala first inspected the site, the condition of the building was extremely critical. The walls had full-depth cracks, and in some areas, there were visible gaps where light was passing through the walls, indicating complete structural failure. This was not just a cosmetic issue — it was a serious safety concern, and the building was at risk of collapse if left untreated. One of the biggest reasons behind this failure was the use of 4-inch (4.5 inch) walls as load-bearing walls, which is a very common but dangerous mistake in small residential constructions across Gujranwala, Aroop, and surrounding areas. These walls are only meant for partition purposes and cannot تحمل the load of slabs or additional structural weight. Over time, the excessive load caused the walls to crack, shift, and eventually separate. Another major issue discovered during the inspection was a 7-inch slab tilt towards one side of the building. This is an extremely serious structural defect that results in uneven load distribution. Due to this tilt, additional pressure was being applied on specific walls, accelerating the cracking process and weakening the overall structure. This kind of problem usually occurs due to poor shuttering, lack of supervision, and absence of proper leveling tools during construction. The building also lacked a proper plinth beam, which is a critical structural element that helps distribute loads evenly and tie the building together. Without a plinth beam, the foundation and walls were not properly connected, leading to uneven settlement and increased cracking. In addition, there was no proper Damp Proof Course (DPC), which caused moisture to rise through the walls. This resulted in visible damp patches, weakened mortar, and further deterioration of the brickwork. The overall construction quality was found to be poor, including: Improper mortar ratio Weak brick bonding Uneven sill levels Lack of structural alignment Poor workmanship All these issues combined created a highly unstable and unsafe structure. After a detailed assessment, Naqsha Wala implemented a complete structural rehabilitation plan rather than just surface-level repairs. The goal was not only to fix the visible cracks but to eliminate the root causes of the failure and ensure long-term durability. The first step involved structural strengthening of the building. Weak and damaged sections of the walls were carefully dismantled and reconstructed using proper techniques and materials. Special attention was given to brick bonding to ensure strong interlocking and load transfer between walls. A proper plinth beam was then introduced to stabilize the structure and distribute loads evenly across the foundation. This significantly improved the overall strength and reduced the chances of future settlement issues. The most critical part of the project was addressing the 7-inch slab tilt. Our team corrected the structural imbalance and ensured proper load distribution throughout the building. This step alone played a major role in preventing further cracking and stabilizing the walls. To solve the moisture issues, a proper DPC system was implemented. This stopped water from rising through the walls and protected the structure from long-term damp damage. Damaged plaster and affected areas were treated and repaired to restore durability. We also corrected all sill levels and alignment issues, ensuring that doors, windows, and openings were properly positioned and structurally safe. This not only improved the strength of the building but also enhanced its functionality and appearance. By the end of the project, the transformation was significant. The building, which was once at risk of collapse, became structurally stable, safe, and long-lasting. All major cracks were resolved, load distribution was corrected, and the overall integrity of the house was restored. This project highlights a very important lesson for homeowners in Gujranwala, Aroop, DHA, Bahria Town, and nearby areas — construction should never be done without proper planning and professional guidance. Small mistakes like using 4-inch walls, ignoring plinth beams, or poor slab casting can lead to major structural failures and expensive repairs. At Naqsha Wala, we specialize in: House design (naksha) Structural renovation Crack repair solutions Damp proofing Grey structure correction Interior and exterior design We ensure that every project is handled with professional expertise, proper engineering principles, and attention to detail. If you are facing issues like wall cracks, dampness, structural weakness, or poor construction, it is important to act early. Delaying repairs can increase damage and cost. Our team provides complete inspection, consultation, and renovation services tailored to your needs. This case study of Rana Jabbar’s house in Aroop Gujranwala is a strong example of how expert intervention can save a building and restore its strength. Whether you are planning a new house or need to fix an existing one, choosing the right professionals can make all the difference. For expert architectural and renovation services in Gujranwala and surrounding areas, contact Naqsha Wala today and ensure your home is built or repaired the right way.
