Custom Welding Station Design – Accurate 3D Modeling & Detailed Drawings by Naqshawala

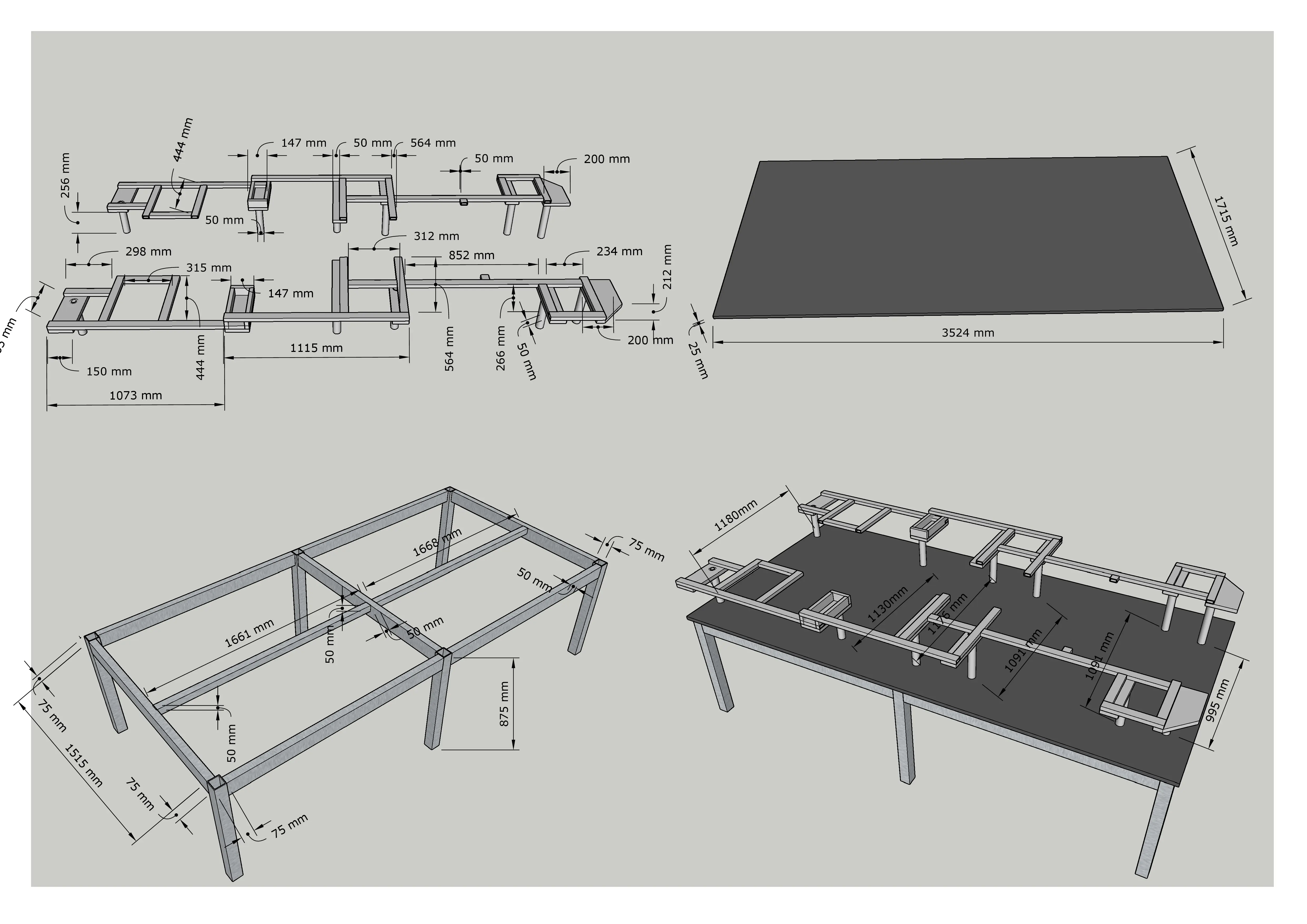

This project is about designing a fully customized welding station in 3D, along with highly detailed and dimension-accurate drawings, tailored exactly to the client’s functional requirements. The client personally visited our office and had one clear concern: 👉 “You are an architect, but can you really create precise 3D assets and models for something as technical as a welding station?” That question became the foundation of this project. Understanding the Client’s Requirement From the very first meeting, the client emphasized precision, accuracy, and practicality. A welding station is not just furniture—it’s an industrial workspace where even a few millimeters of error can affect productivity, safety, and workflow. The client needed: A custom-designed welding station Exact dimensions for every component Clear 3D visualization before fabrication 3D detailed drawings that could be directly used by the workshop team At Naqshawala, we treat industrial and architectural projects with the same level of seriousness, whether it’s a house plan, interior, or a fabrication setup. 3D Welding Station Modeling Process We started by breaking the welding station into individual functional elements, just like architectural components: Welding table structure Worktop surface and thickness Storage areas and tool placement Safety clearances and working zones Load-bearing considerations Each part was developed as a separate 3D block, similar to how furniture blocks are created in professional architectural workflows. This approach ensured flexibility, accuracy, and easy future modifications. Using professional 3D tools, we created a clean, realistic, and technically precise 3D model that allowed the client to visualize the welding station from every angle before moving toward fabrication. Precision & Dimensional Accuracy One of the most critical requirements of this project was dimension accuracy. Every element of the welding station was: Modeled to exact real-world measurements Checked for proportional balance and usability Optimized for daily welding operations We then provided 3D dimensioned drawings, ensuring the fabrication team could clearly understand sizes, spacing, heights, and alignment—without confusion or assumptions. Detailed 3D Drawings with Naqshawala Signature To maintain professional authenticity and accountability, all drawings were delivered with: 3D dimensions Clear labeling of components Drawing data signature of Naqshawala Ready-to-use format for workshop execution This not only helped the client during fabrication but also built confidence that the design came from a professional architectural and 3D modeling studio. Final Outcome The final welding station design was functional, precise, and visually clear. The client was impressed by how architectural thinking could be applied to an industrial setup—proving that 3D modeling is not limited to houses or interiors. This project highlights Naqshawala’s ability to handle: Industrial workstations Custom fabrication designs Technical 3D assets Dimension-critical projects If you’re looking for custom 3D welding stations, fabrication layouts, or precise industrial drawings, Naqshawala delivers designs that are not just good-looking—but ready to build ⚙️🔥 Tags custom-welding-station-design 3d-welding-station-model industrial-workstation-3d fabrication-welding-table-design naqshawala-3d-modeling precision-3d-drawings
