3 Marla 20x38 Feet 3-Storey House Plan in Rawalpindi Adiala Road

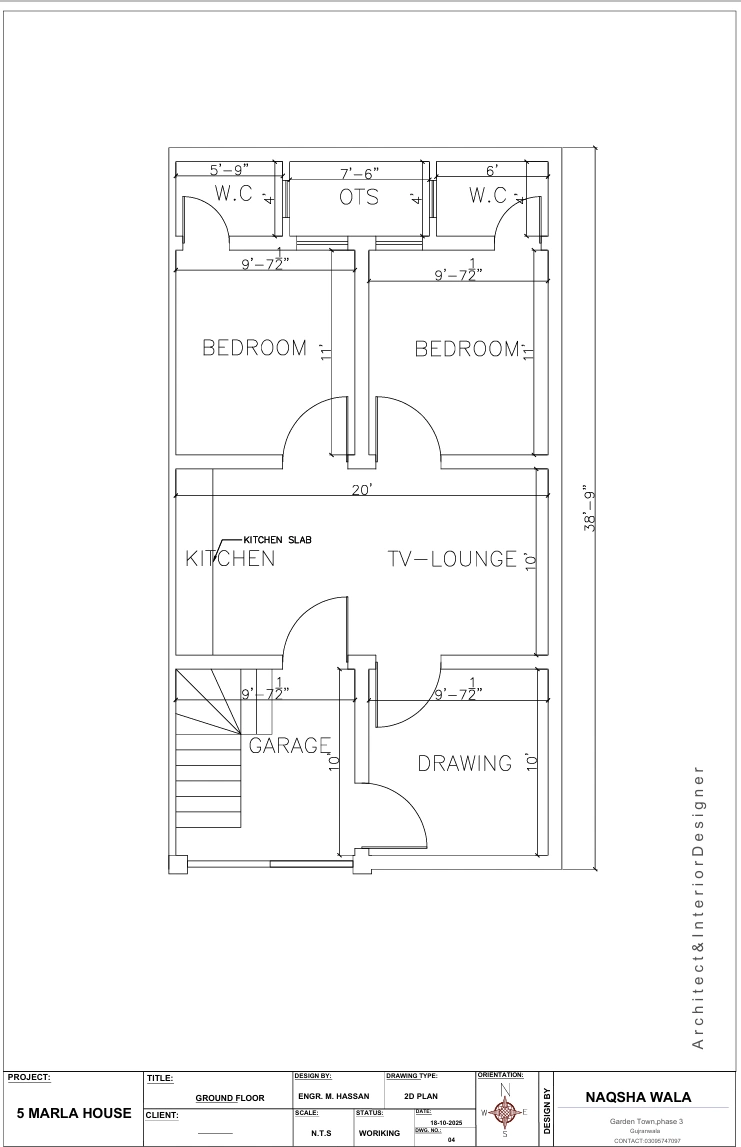

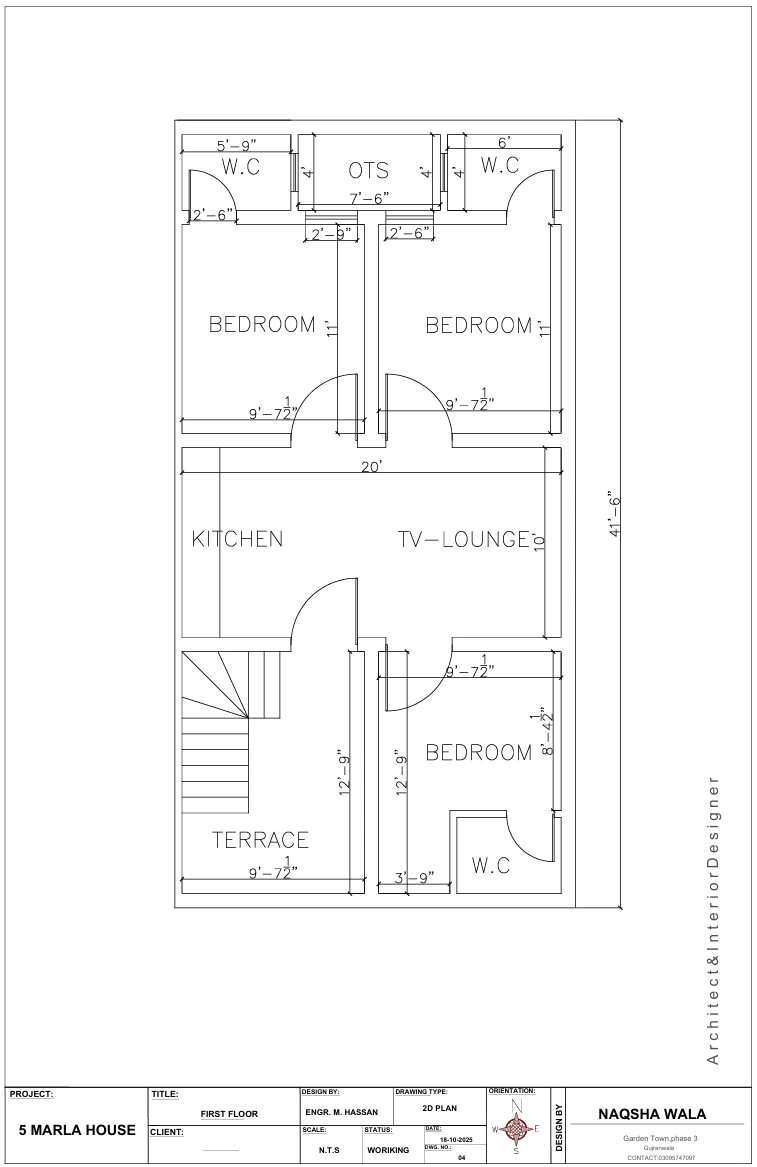

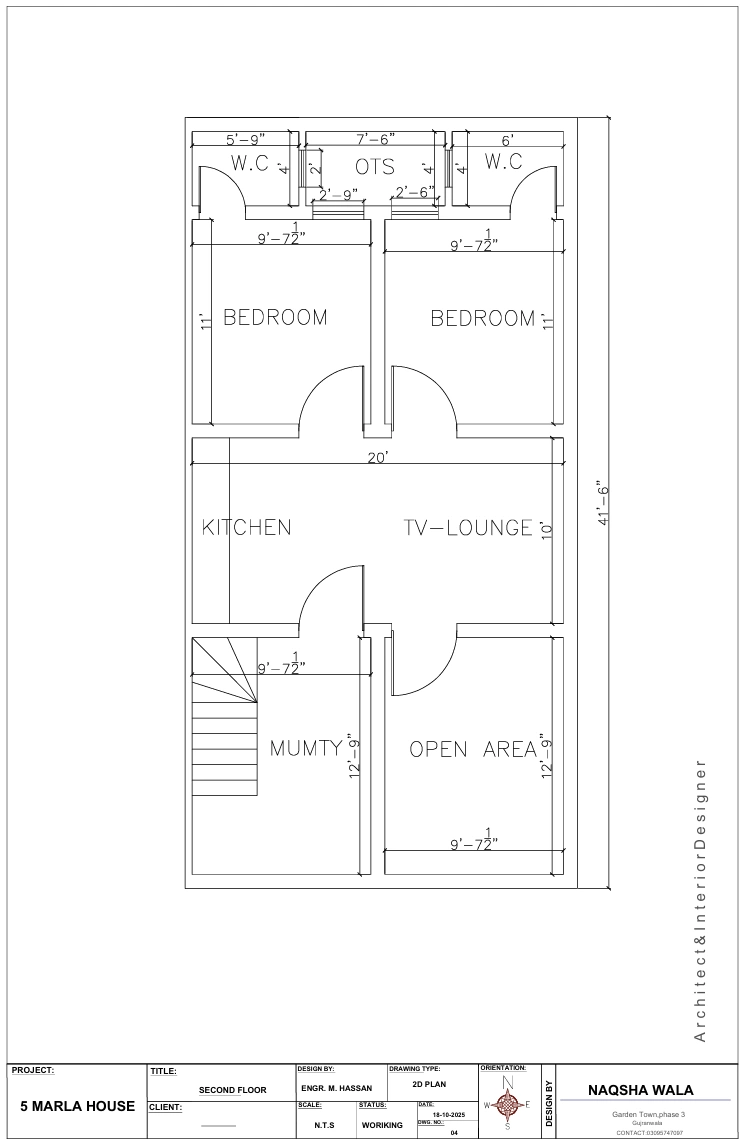

This project represents one of the very first professional architectural works completed by Nakshiwala Islamabad after launching our Islamabad office in Chaklala Scheme-3. It was a special project for us because it marked the beginning of our physical presence in the capital and also set the standard of how we handle technically sensitive and legally important house plan approvals. The client contacted us when they were in the process of transferring ownership of an already-constructed house from the first owner to a new owner. As per Islamabad development authority rules, updated architectural drawings and Naksha approval were mandatory, and that is where Nakshiwala Islamabad stepped in. The house was already built on a 20 feet × 38 feet plot, which falls under a 3 marla category. It was a 3-storey residential house located on Adiala Road, Islamabad, and since it was previously constructed without complete professional documentation, the new owner needed a full architectural, structural, and MEP drawing set to legalize, record, and approve the property. Our task was not to redesign the house, but to recreate the entire building as-built drawings with absolute accuracy so that it could be approved by the relevant authorities. We started by doing a detailed site measurement survey. Every wall, stair, room size, slab level, shaft, and opening was carefully measured. Since even a few inches of mistake can cause rejection during approval, Nakshiwala Islamabad followed a strict technical verification process. The ground floor, first floor, and second floor layouts were all recreated inside professional CAD software, converting the physical structure into precise architectural Naksha drawings. The ground floor plan was drafted showing entrance, circulation, rooms, kitchen, washrooms, stairs, and all wall thicknesses exactly as built. The first floor and second floor were also prepared in the same way, ensuring vertical alignment of walls, columns, and stairs. These floor plans are what you are seeing here, giving a clear understanding of how a 20x38 3-marla 3-storey house is arranged efficiently in a compact Islamabad plot. But our scope did not stop at floor plans. For authority approval, a complete technical drawing set was required, so Nakshiwala Islamabad prepared all of the following: • Architectural drawings • Ground floor, first floor, second floor plans • Front elevation, side elevation, and back elevation • Building sections and wall section cuts • Gate plan and site plan • MEP drawings • Electrical layout • Plumbing system • Sewerage and drainage lines • Structural & reinforcement drawings • Typical slab reinforcement • Staircase details • Beam and wall section details • Structural section cuts All these drawings were produced to meet Islamabad building control requirements so the house could be legally transferred and approved without any complications. A 20x38 feet (3 marla) plot is small, especially when it is developed into a three-storey house, so accuracy becomes extremely important. Any mistake in stairs, slab levels, or wall positions can create structural or approval issues. That is why this project highlights Nakshiwala Islamabad’s strength in as-built documentation and approval drawings, not just new house design. This type of service is very common in Islamabad, Rawalpindi, and Adiala Road areas where many houses are built by local contractors without proper drawings, and later owners need official Naksha sets for bank loans, registry transfer, CDA or RDA approval, and property legalization. Nakshiwala Islamabad provides a complete solution for that. Even though only floor plans are presented here, they are part of a much larger professional documentation set that includes every technical detail of the building. These drawings help homeowners, investors, and authorities clearly understand how the house is constructed, how utilities run, and how the structure is supported. This project proves that Nakshiwala Islamabad does not only design luxury houses, but also handles technical approval-based projects, old house documentation, and legal architectural Naksha preparation with the same level of professionalism. If you own a house in Islamabad, Adiala Road, Chaklala, or nearby areas and need 3 marla house plans, 20x38 house Naksha, or approval drawings for an already built house, Nakshiwala Islamabad can handle the complete process from site measurement to final approved drawing set.
